Easy Construction Laying Textured and anti-slip Geomembrane 1.0mm-2.5mm for Slop application

Name: Easy Construction Laying Textured and antislip Geomembrane 10mm25mm for Slop application
Brand: JianYi
Price: 1 USD

Buy cheap Easy Construction Laying Textured and anti-slip Geomembrane 1.0mm-2.5mm for Slop application product

Brand Name : JianYi

Model Number : 6m-8m Width and 50m-150m Roll Length

Certification : ISO 9001 & CE

Place of Origin : China

MOQ : 330㎡

Price : Inquriy anytime

Payment Terms : T/T,L/C

Supply Ability : 1200t/month

Delivery Time : 7-15 days

Packaging Details : Plastic packaging

Color : Black

Uv Resistance : Yes

Length : 50m-100m

Application : Landfill capping, pond liners, waste containment

Width : 6m-8m

Waterproof : Yes

Thickness : 0.5mm-2.5mm

Contact Now

Easy Construction Laying Textured and anti-slip Geomembrane 1.0mm-2.5mm for Slop application

Product Introduction

Jianyi HDPE textured geomembranes are available with either single- or double-sided textured surface which exhibit superior shear strength and the high multi-axial performance. The textured surface processing is the only one that produces a textured material without significant reduction of any physical properties. The product allows project for greater slopes to be designed since frictional characteristics are enhanced. Compared with smooth HDPE geomembranes, they have better friction features.

The manufacturing of HDPE geomembrane textured contains approximately 97.5% polyethylene, 2.5% carbon black and trace amounts of anti-oxidants and heat stabilizers, no other additives, fillers or extenders are used. The textured surface is processed by spraying system.

Feature and Advantage of HDPE Geomenbrane Textured

1. Tear Resistant

2. Puncture Resistance

3. Very low permeability

4. Good friction performance

5. Alkali and acid resistance

Geomembrane Series

Textured HDPE Geomembrane For Landfill project national standard (GB/T 17643-2011(GH-2T1,GH-2T2))

Serial Number	Project	Index
Serial Number	Thickness(mm)	0.75	1.00	1.25	1.50	2.00	2.50	3.00
1	Density (g/c㎡,≥)	≥0.940
2	Textured Highth (mm)	≥0.25
3	Yield Strength (N/mm,LD/TD)	≥11	≥15	≥18	≥22	≥29	≥37	≥44
4	Breaking Strength (N/mm,LD/TD)	≥8	≥10	≥13	≥16	≥21	≥26	≥32
5	Yeild Elongation Rate (%)	≥12
6	Breaking Elongation Rate (%)	≥100
7	Rectangular Tear Strength (N)	≥93	≥125	≥160	≥190	≥250	≥315	≥375
8	Puncture Strength (N)	≥200	≥270	≥335	≥400	≥535	≥670	≥800
9	Tensile Load Stress Cracking (Notch Constant Load Tensle Method) h	≥300
10	Carbon Black Content(Rang) (%)	2.0~3.0
11	Carbon Black Dispersion	There is not more than one grade 3 in 10 data, and grade 4 and grade 5 are not allowed
12	Oxidative Induction Time (OIT)	Standard OIT (min)≥100
12	Oxidative Induction Time (OIT)	High Pressure OIT (min)≥400
13	85℃ thermal aging (Atmospheric Pressure OIT Retention After 90 Day)	≥55
14	Ultraviolet Irradiation After 1600 Hours, The OIT Retention(%)	≥50

(CJ(City construction standard)-T234-2006)

Specification	1.00mm	1.25mm	1.50mm	2.00mm	2.50mm	3.00mm	Remark
Item
Thickness (mm)	1.00mm	1.25mm	1.50mm	2.00mm	2.50mm	3.00mm
Textured Highth (mm)	0.25
Density (g/c㎡,≥)	0.94
Tensile Properties
Yield Strength (N/mm,LD/TD)	15	18	22	29	37	44
Breaking Strength (N/mm,LD/TD)	10	13	16	21	26	32
Yeild Elongation Rate (%)	12
Breaking Elongation Rate (%)	100
Rectangular Tear Strength (N)	125	156	187	249	311	374
Puncture Strength (N)	267	333	400	534	667	800
Environmental Stress Crack Resistance (h) (A single point of incision constant tensile method)	300
Carbon Black
Carbon Black Content(Rang) (%)	2.0~3.0
Carbon Black Dispersion	Nine of 10 observation area should be grade 1 or grade 2, not more than 1 of grade3
Oxidative Induction Time (OIT)
Standard OIT (min)	100
High Pressure OIT (min)	400
85℃ Oven Ageing (Minimum Average)
90 days after baking, the standard OIT retention(%)	55
90 days after baking, the hight pressure OIT retention(%)	80
The Anti-UV Strength
Ultraviolet irradiation after 1600 hours, the standard OIT retention(%)	50
Ultraviolet irradiation after 1600 hours, the high pressure OIT retention(%)	50
-70℃ The Low Temperature Embrittlement Performance mpact	Pass
Water Vapor Penetration Coefficient g.cm (cm2.s.Pa)	≤1.0X10-13
Dimensional Stability	±2

Forms Ordinary sheet size/roll:

Thickness mm	Width meters	Length meters
1.0	5.8/6	50
1.0	7	50
1.5	5.8/6	50/100
1.5	7	50
2.0	5.8/6	50
	7	50
	8	50/100

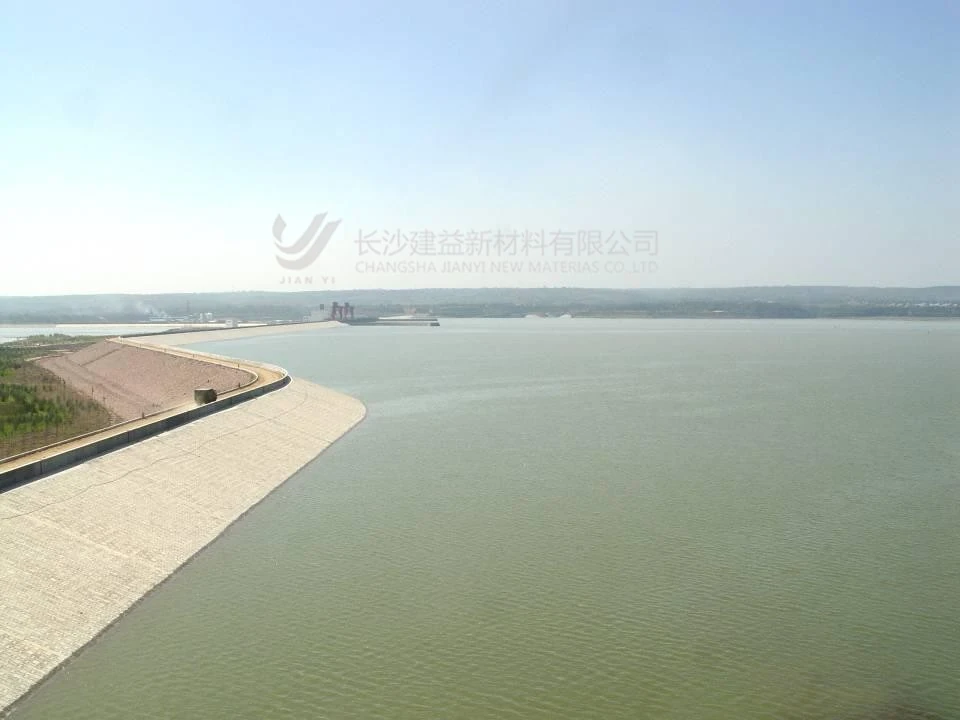

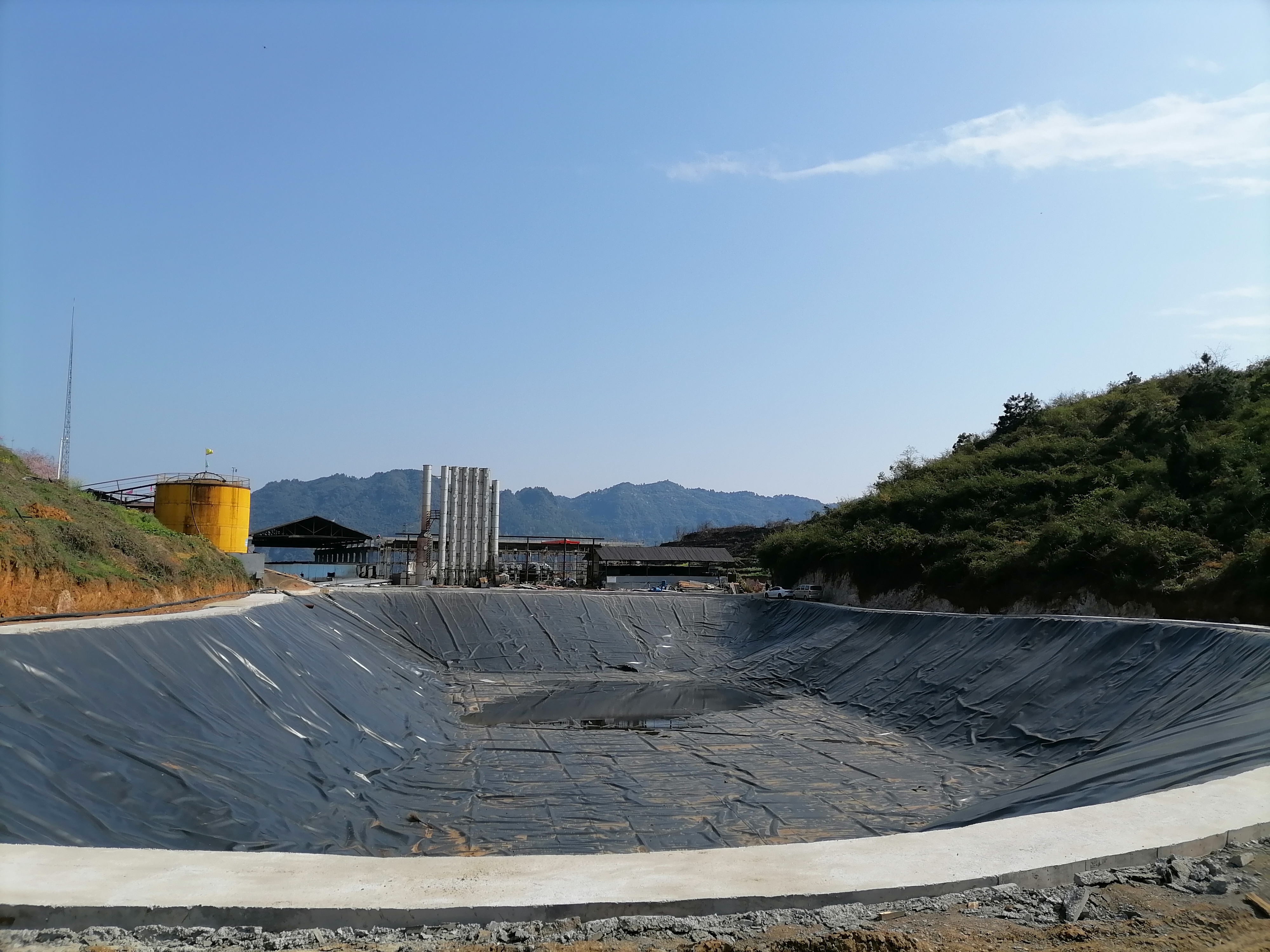

HDPE Gemenbrane Texture Application

HDPE Geomembrane textured is used in applications that require increased frictional resistance, excellent chemical resistance and endurance properties.

Solid waste landfills
